BonPEC - Pulsed Eddy Current

---

ETher NDE's innovative pulsed eddy current

 technology (PECT) solution.

BonPEC delivers a non-intrusive electromagnetic technique based on Pulsed Eddy Current which allows detection, measurement and monitoring of corrosion in low alloyed carbon steel pipes and vessels through their insulations, coatings, paints, concrete fire-proofing or marine growth.

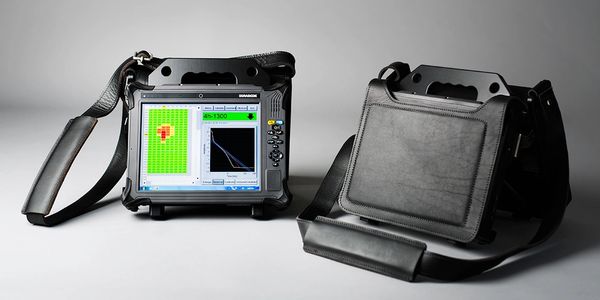

• Two screen display options.

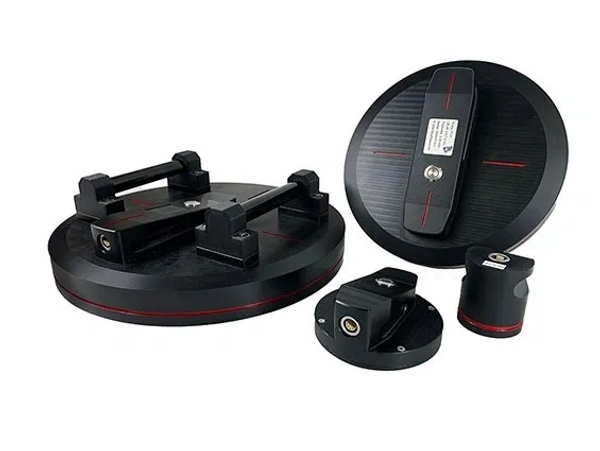

• Two probes as standard within the kit.
• Lightweight adaptable system.
• NDT Inspection workflow based software delivering advanced PECT data analysis and evaluation.
• Standard set is splash water tight, salt and fog resistant, meets IP65.
• Measures through 2-65mm wall thickness, up to 250mm lift-off.
• Min. pipe diameter 50mm (2”).
• Pipe Temperature Range (through insulation) -150°C to 500 °C.
• "Probe-touch" temperature range: -20°C - 50°C.
• Intuitive software and advanced reporting features including Auto report generation, Graphs, 3D result projection on object model/photographs etc

BonPEC Standard Kit, including two probes,

fits in one rugged wheeled transport case.

Core Applications:

• Corrosion under Insulation (CUI).
• Corrosion under fire proofing of supporting legs of storage spheres.
• Inspection of Column Skirts & Sphere Tank Legs (CUF).
• Repair Wraps.
• Flow Accelerated Corrosion.
• Ship Hulls.
• High-temperature Wall Thickness Monitoring.
• Well Casings.
• Sheet Piling.
• Ideal for in-service Corrosion Monitoring.
