UT Systems Solutions

---

Tecnitest NDT are an advanced NDT Engineering company who works directly with customers to provide the best solution with over 30 years of experience in the development of turn key NDT systems in all industrial sectors; with their own mechanical, electronic and specialized software design experts.

The Tecnitest product range includes:

• Ultrasonic (UT) Wall Crawlers
• Ultrasonic (UT) Robotic 3D scanning and Immersion Tanks
• Rail Axle Inspection Systems
• Eddy Current (ET) Aircraft Wheel Inspection Systems

• X-Ray Cabinets
• X-Ray & Gamma Ray Winding Gear
• UT Weld Inspection Systems
• UT Nodularity Inspection Systems

CETA Features

• Enables speeds up to 200 mm/s, measuring every 1 mm (accuracy ±0.1 mm).
• Uses a wheel probe transducer, 5MHz, virtually dry contact.
• Thickness values are shown in a two axis graphic format for easy analysis (B-Scan).
• Dedicated software system meets API 653, full A-scan recordings and re-gate possible.

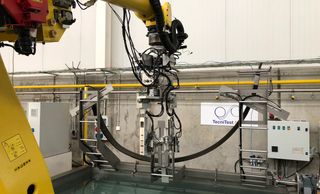

SITAU-TRITON Features

• Articulated industrial robot with programmable manipulator operating in 6 controlled axes.
• Robotic linear guidance system.
• Quick change tools allow 3 areas of movement simultaneously.
• PE techniques with PA, double transmission with plate reflective, TT for sandwich structures.
• Systems consists of an immersion tank, 6 axes Robot, programming software
• “VisualScan” analysis Software. delivering A, B and C-Scan results.
• 7 phased array probes with 128 elements; up to 896 for complex configuration.
